Rotec
Panther
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft.
|
|

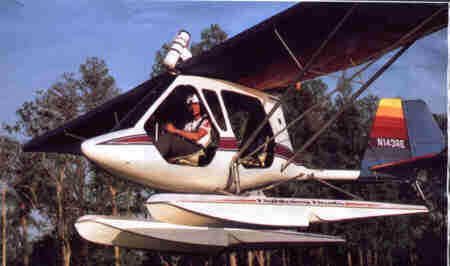

The Rotec
Rally Panther was introduced in both a
single and a two place in 1984. The Panther
series of aircraft are taildragger's, with a
high wing, enclosed cockpit, strut braced in
a pusher configuration.
Seating is tandem on the two place. Controls
used a center mounted stick(s) using a yoke
and rudder pedal(s), with a left hand
throttle. Construction is bolt together
aluminum tubes covered in dacron sail cloth,
with a fiberglass nose pod. |
The Panther
series uses a shock absorber suspension
system on the two main wheels and bungee
cord suspension on the tail wheel.
The Rotax liquid cooled engine is mounted
above the wing.
Initially
the Panther's were introduced with spoilers,
but soon were being built with ailerons. The
cockpit came with doors that could be
removed for summer operation. |
|
| Rotec Rally
Panther single place aircraft specifications. |
|
Wing Span |
34 ft. |
|
Wing Area |
148 sq. ft. |
|
Length |
17 ft. 6" |
|
Max Gross Wt |
499 lbs. |
|
Empty Wt |
254 lbs. |
|
Fuel Capacity |
5 gal. |
|
Seats |
1 |
|
Rotec Rally Panther single place aircraft
performance specifications. |
|
Engine |
Rotax 277, 377, 503 |
|
Range |
172 sm. |
|
Takeoff Dist |
150 ft. |
|
Landing Dist |
225 ft. |
|
VNE |
mph. |
|
Cruise |
55 mph. |
|
Climb Rate |
400/650 fpm. |
|
Stall |
25 mph. |
|
Construction
|
Est. Bldg. Time 100 hrs. |
|
|
 |
|
