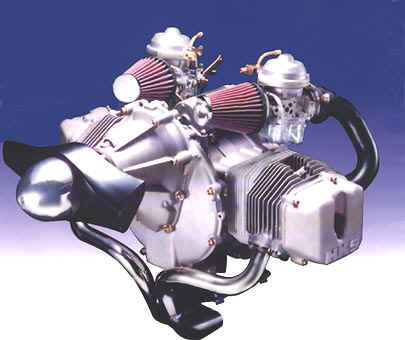

The HKS-700E is a 60 hp, horizontally opposed, two
cylinder, four stroke engine. The 700E uses a combination of
high technology and simplicity to achieve the twin goals of high power and reliability. Every major component on the
700E has been designed and tested for light aircraft use.
The 700E engine employs modern
features .such as a multi-valve, oil-cooled head design, nickel ceramic coated
cylinders and dual .electronic ignition. The valve train is operated by a single cam
with cylinder encased .push rods. Valve lash is maintained hydraulically. Torsional
vibration is controlled with .the use of a large diameter flywheel between the crank and the integral
gearbox. A dry.
sump lubrication system is utilized, allowing both tractor and pusher
aircraft installations.
To ensure consistent performance and conformity, each HKS-700E will come
fully .broken-in and dyno tested at the factory for 11/2 hours.
In development for over three .years, HKS has created the engine that OEMs, flight schools and pilots
have been .waiting for.
HKS specifications
Four Stroke Design
Displacement: 680 c.c.
Integral Gearbox (2.58 to 1)
Bore: 85 mm
Four Valves Per Cylinder
Stroke:
60 mm
Air-cooled Cylinders
Compression ratio: 11.3:1
Oil Cooled Heads
Fuel:
Unleaded Premium Automotive
Stainless Exhaust System
Weights Engine only: 103 lbs (with gearbox and electric starter)
Dual Electronic Ignition
Exhaust system: 7 lbs
Dry Sump Lubrication
Oil tank and cooler: 6 lbs
Electric Start Standard
Total system:
116 lbs
Factory Break-in 1 1/2
hrs
Performance
60 horsepower @ 6200 rpm
58 ft. lbs torque @ 5000 rpm
3.4 gal/hour @ 4200 rpm
500 hour time between overhaul
