Hirth 3202 2 cycle 55hp
(Replaced Hirth 2704)

Hirth 3202 2 cycle 55hp

Special Design - High Torque/Low Rpm Engine

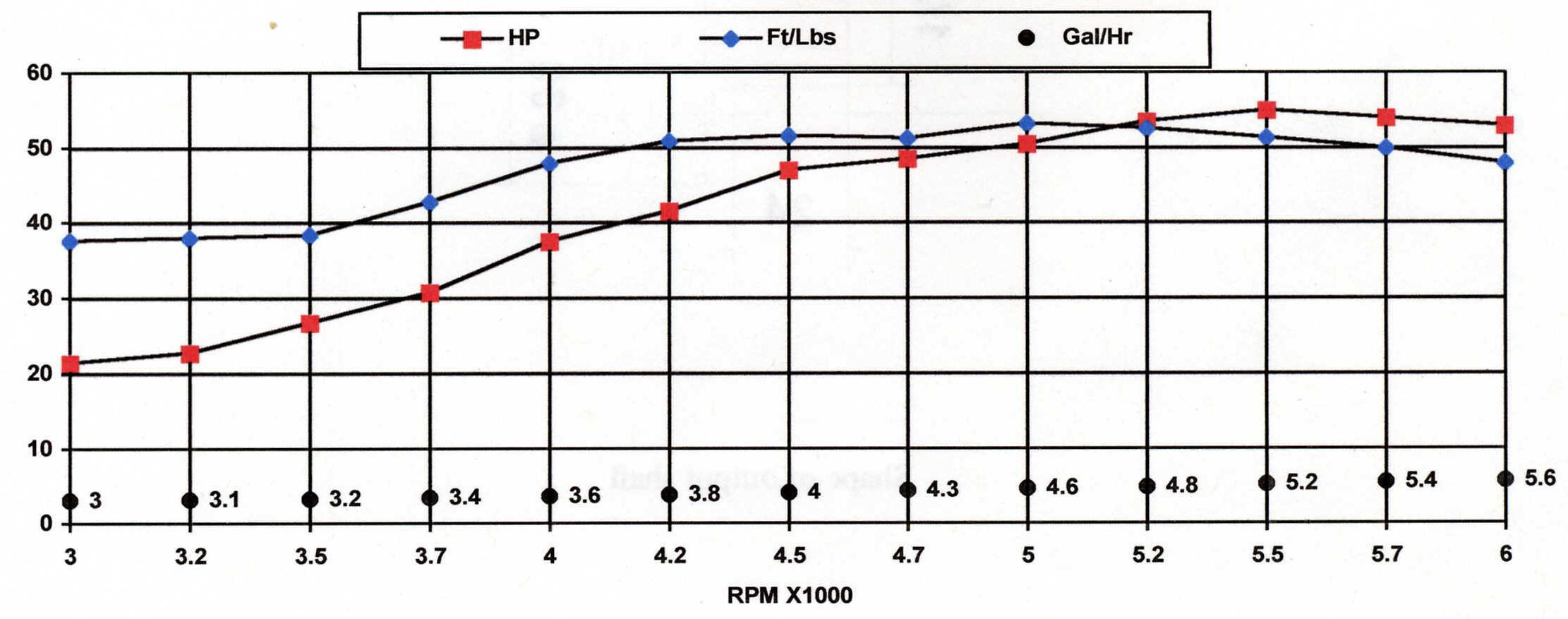

The 3202 produces 55hp at only 5500 rpm while building an impressive torque of 53.2 ft lbs. at only 5000 rpm. Operating in an Rpm range 1500 Rpm less than conventional 2 cycles results in a very smooth and quiet running engine with impressive power. Fuel rate is lowered and TBO increases.

3202 incorporates Al-Nikasil coated cylinders for superior performance and reliability. Al-Nikasil in simple terms is a nickel based material, applied in a paste form, when super heated it becomes part of the cylinder itself. Al-Nikasil provides for a super low coefficient of friction, reducing engine heat and wear.

The pistons and cylinders expand at the same rate thus providing for a seizure resistant engine. 3202 crankshaft is 4130 chromemolly steel.

Heads, cylinders, rings, block casting, connecting rods and associated components are all of the highest grade alloys available.

 Factory recommended TBO is rated at 1200 Hrs. @ 75% power.

Model:

 3202

Carburation:

 Dual 34mm slide or optional electronic fuel injection

Engine Type:

 2 cycle, two cylinder

Fuel Pump:

 Auxiliary external pneumatic

Bore:

 76mm

Lubrication:

 Fuel mixed with oil @ 50:1 /Blue Max @100:1 or optional oil injection

Stroke:

 69mm

Rotation:

 Counter clockwise, viewed from output end

Displacement:

 625cc

Starter:
Alternator:

 12 volt electric, recoil or both
250 watt/20 amp alternator standard

Compression:

 9.5:1

Cooling:

 Optional, fan cooled or free air cooled by prop

HP Output:

 55hp @ 5500rpm

Weight:

 73 lbs-free air, 79 lbs-fan cooled including electric starter and exhaust. Optional gearbox adds 19 lbs.

Torque:

 53ft/bs @ 5000rpm

Reduction Units:

 G-50 gearbox available in 2.16:l, 2.29:l, 2.59:l, 3.16:l and 3.65:l ratios.

Ignition:

 Dual CDI
(Capacitive digital Ign.)

Drive Coupling:

 Elastomeric dampener or optional centrifugal clutch.
Recreational Power Engineering 5479 E. Co. Rd. 38, Tiffin, Ohio 44883
 419-585-7002
