Limbach L 2000 E0, EC, Limbach engines, Limbach aircraft engines, Limbach
80 HP aircraft engine.
|
|
|
|
|
|
|
|
|
|

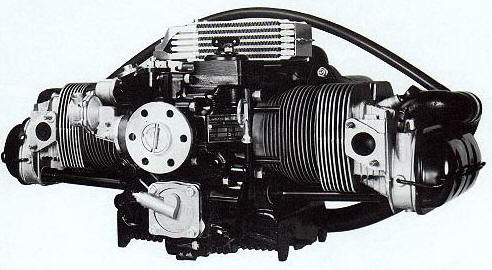

Limbach
L 2000 E0,EC
Four cylinder,
horizontally opposed air cooled engine, with single magneto ignition,
wet sump pressure lubrication |
| Maximum HP
(5min) |
80 HP / 59 /
3400 rpm |
| Continous HP |
70 HP / 51 /
3000 rpm |
| Bore |
90 mm / 3.54
inch |
| Stroke |
78.4 mm / 3.09
inch |
| Displacement |
1994 cm³ /
121.68 cub.in |
| Compression
ratio |
8.4:1 |
| Magneto |
Slick 4330 |
| Harness |
Slick High Temperature |
| Spark plugs |
Eyquem A 755 |
| Electrode
spacing |
0.4 mm |
| Firing Order |
1-3-2-4 |
| Firing point |
30° BTDC |
| Carburator |
Zenith 150 CD-3 |
| Fuel min.
octane |
98 RON
(Unleaded) / AVGAS 100 LL |
| Air cleaner |
Limbach |
| Mechanical fuel
pump |
APG-Limbach |
| Starter with
solenoid |
12 V / 1.4 kW |
| Generator |
14 V - 33 A or
14 V - 55 A |
| Oil pressure |
max. 4 bar; min
1 bar at 2500 rpm |
| Oil temperature |
max. 120 ºC;
min 50 °C |
| Oil capacity |
2.5 ltrs |
| Cylinder head
temperature |
max. 250 °C |
| Tachometer
drive |
mechanical |
| Propeller drive |
direct,
anti-clockwise |
| Propeller hub |
E0 1 for
variable pitch
EC 1 for variable pitch pusher
E0 2 for fixed pitch
EC 2 for fixed pitch pusher
E0 3 for fixed pitch (SAE No.1)
EC 3 for fixed pitch pusher (SAE No.1) |
| Dry weight
approx. |
74 kg |
| Fuel
consumption |
should be
individually established during flight tests
however the average fuel consumption is approx.: 12 ltrs/hr |
| LBA Type
Certification No. |
4597 (JAR 22-H) |
|
Limbach Flugmotoren GmbH & Co. KG
Kotthausener Str. 5
53639 Königswinter
Tel.: ++49 - (0)2244 - 9201-0
Fax: ++49 - (0)2244 - 9201-30 |
|
|
|
