Limbach L 275 E, Limbach engines, Limbach aircraft engines, 25
HP Limbach aircraft engine.
|
|
|
|
|
|
|
 |
|
|

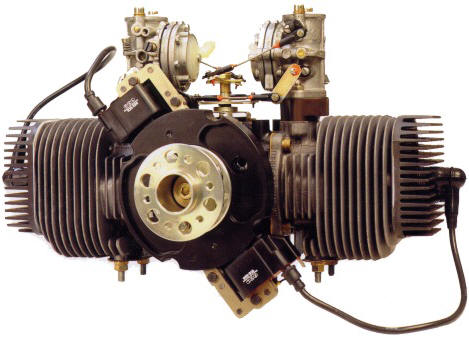

Limbach
L 275 E
Two cylinder,
horizontally opposed air cooled, two cycle engine, with solid state
magneto ignition, mixture lubrication. Suitable for pusher and tractor
installations |
| Performance |
20-25 HP at
7300 rpm |
| Bore |
66 mm / 2.60
inch |
| Stroke |
40 mm / 1.57
inch |
| Displacement |
274 cm³ / 16.72
cu.inch |
| Crancase |
Aluminium
casting |
| Crankshaft |
Drop forged,
one piece utilizing 2 split connecting rods with needle
baerings |
| Pistons |
Cam ground , casted
aluminium alloy |
| Cylinders |
Casted
aluminium alloy, with nicasil coated barell |
| Ignition System |
Solid state
magneto ignition |
| Firing Order |
both cylinders
simultaneously |
| Carburator |
2 diaphragm all
position carburators |
| Starter |
12 V
optional |
| Generator |
without |
| Dry weight
approx. |
7,7 kg with
magneto ignition |
| Fuel
|
AVGAS 100 LL or
90 RON mixed with a suitable oil
to the ratio of 1:25 or 1:50 (w. synthetic oil) |
| Optional
Equipment: |
Cylinders
without additional heat sinks (-0.6 kg)
Shielded ignition system
Long and short crankshafts, Exhaust stacks |
|
Limbach Flugmotoren GmbH & Co. KG
Kotthausener Str. 5
53639 Königswinter
Tel.: ++49 - (0)2244 - 9201-0
Fax: ++49 - (0)2244 - 9201-30 |
|
|
|
