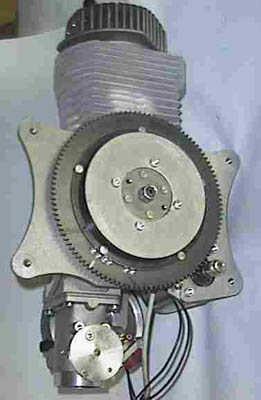

MZ 35i, MZ35i, MZ 35i motorized glider
engine.
|
|
|
|
|
|
|
|
|
|

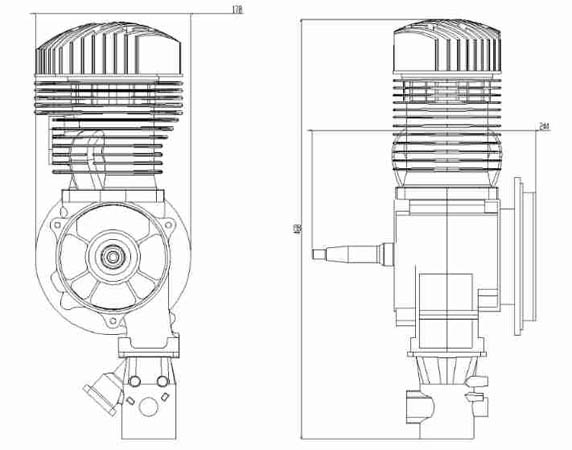

 The MZ35i is an electronic fuel injection single-cylinder
engine. Its long, narrow shape is specially designed for mounting on
powered gliders with retractable engine (Silent).
The cylinder is made of aluminium alloy coated with Nikasil to ensure low weight and a virtually
unlimited lifespan.
The ignition and injection systems are controlled by
the electronic control unit which contains the maps for correcting the
spark advance and injection in real time. The MZ35i engine weighs 10.5 kg
complete with electric ignition and automatic decompression device.
The
electronic control unit also monitors atmospheric pressure, engine
temperature and air temperature so as to constantly optimize engine
efficiency, resulting in very reduced fuel consumption and constant power
availability.
The exhaust pipe weighs 1.5 kg complete with manifold This
engine is supplied complete with reduction drive, electric starter,
automatic decompression valve, battery and exhaust.
Technical specifications:
| Engine type: |
MZ35i Single cylinder two stroke |
| Cooling system: |
Free air cooled by propeller. |
| Rotation: |
Clockwise when facing gear box. i.e. from the front in tractor
format |
| Displacement: |
313 c.c. |
| Bore / Stroke: |
76 mm / 69 mm |
| Alternator output: |
180 Watts |
| Ignition system: |
Fully electronic mapped ignition. |
| Fuel metering: |
Electronic Fuel injection. |
| Lubrication: |
Fully synthetic oil, pre-mixed 50:1 in fuel. (unleaded mogas) |
| Output power: |
31 Hp@ 6450 RPM |
| Weight: |
12 Kgs. Complete with all ancillaries, including exhaust, starter
and battery. |
| Guarantee: |
One year or 200 hours running time. |
| Time before overhaul: |
500 hours running time. (to be increased) |
| Time between de-cokes: |
Due to high efficiency, this engine should not normally require
de-coking. |
|
|
|
|
Compact Radial Engines Inc. #3 8473 - 124th Street Surrey, British
Columbia Canada, V3W 9G4 604-590-2950 |
|
|
|
