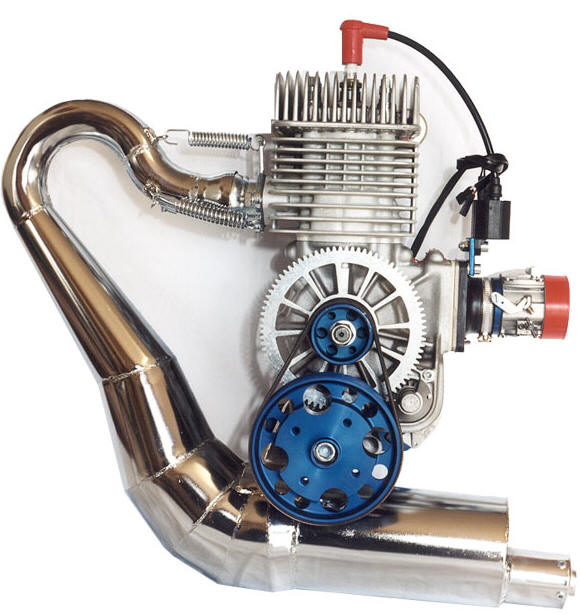

Simonini engines Italy, Simonini Victor Mini 2 Plus
distributed by Speedwing Aircraft.
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
Schedule

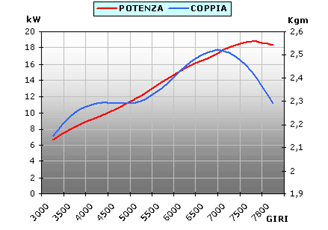

consumption and thrusting curve, engine "MINI 2 PLUS"
matriculation number M2210
Poly V belt reduction, ratio 1:230
Double blades pushing propeller (made on wood), 126 GT |
Testing
conditions :
T 2° C - P 1048 Mb UR 46%
Locality Torre Maina 18/02/2001
Altitude (S.L.M.) 300 mt.
|
|
RPM..
|
Consumption L/hour.. |
Kg.
of thrusting..
|
|
7200
|
5.8 |
86 |
|
7000
|
5.6 |
82 |
|
6800
|
5.4 |
78 |
|
6600
|
5.2 |
72 |
|
6400
|
4 |
66 |
|
6000
|
3.5 |
58 |
|
5500
|
2.5 |
48 |
|
5000
|
2.2 |
44 |
|
4500
|
2 |
31 |
|
4000
|
1.5 |
28 |
TECHNICAL DATA:
Bore: 66,4 mm, Stroke: 58 mm, Displacement: 202 cc.
Compression Ratio: 10,5/1, Power: 28 Hp at 7.200 r.p.m.
Weight of the engine Kg 13, weight of the exhaust kg 2,4.
Lamellar intake with Walbro WB 32 carburetor, on request Walbro WB 39.
Air-cooling. Aluminium cylinder with Nikasil ceramic coating.
Exhaust resonance system. Poly-V belt reduction.
Electronic ignition with alternator for recharge battery in fly.
Electric starter.
Premix two stroke oil in gasoline,
2,5% oil by volume to leaded fuel,
3% oil by volume to unleaded fuel.
Reduction rations avaiable:
1:226 Crown gear 129 mm / Pinion 57 mm
1:230 Crown gear 129 mm / Pinion 56 mm
1:234 Crown gear 129 mm / Pinion 55 mm
|
| For more information contact: Speedwing
Aircraft Inc
2500 CH. De La Presqu'ile
L'Assomption Quebec
Canada J5W 3P3
450-589-1950 |
|
|
