Simonini engines Italy, Simonini Victor 2 distributed
by Speedwing Aircraft.
|
|
|
|
|
|
|
 |
|
|
|
|
Schedule thrusting curve, engine "Victor 2" matriculation number
S113
Type "C" reduction, ratio 1/2.76
Double blades pushing propeller (made on wood), 182x119 GT |
 |
|
RPM.. |
Propeller turns.. |
Kg of thrusting.. |
|
2200 |
797 |
26 |
|
3125 |
1132 |
69.5 |
|
4075 |
1476 |
91 |
|
4250 |
1540 |
100 |
|
4435 |
1607 |
110 |
|
4700 |
1703 |
120 |
|
5050 |
1730 |
140 |
|
5350 |
1938 |
160 |
|
5800 |
2120 |
180 |
|
5900 |
2137 |
200 |
|
6000 |
2173 |
210 |
|
6200 |
2246 |
225 |
|
 |
Testing
conditions : T 2° C - P 1048 Mb UR 46%
Locality Torre Maina 17/01/2001
Altitude (S.L.M.) 300 mt.
Engine: Victor 2 axc 78x72x2 688 cc rdc 9,5/1
Lamellar induction, double carburettor (Bing 36 mm.), aluminium
cylinders Nicasil ceramic filling.

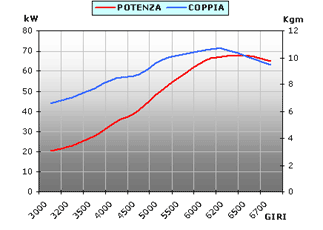

Exhaust systems with indipendent resonance, maximum power 92 HP at
6200 rpm, couple at power speed 10,80 Kgm.
Type "C" reduction with elastic joint/vibration damper, ratio
available 1/2,54, 1/2,76, 1/3,47, 1/4.
Type "C" reduction and electric start mass-produced.
Flying consumption at 5200 rpm, 7 liters/hour.
Lubrication: premix 2,5 with leaded fuel, 3% with unleaded fuel
(SP).
Total weight with accessories, radiator, cooling liquid and
propeller 52 Kg. |
|
| For more information contact: Speedwing
Aircraft Inc
2500 CH. De La Presqu'ile
L'Assomption Quebec
Canada J5W 3P3
450-589-1950 |
|
|
