Affordaplane, Afford a plane, Affordaplane plans built ultralight aircraft. |
|||||
|
|||||
|
Should you trust a stockbroker who's married to a travel agent? |
|||||
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
|
|
|||||
Affordaplane plans built ultralight aircraft. |
|||||
|

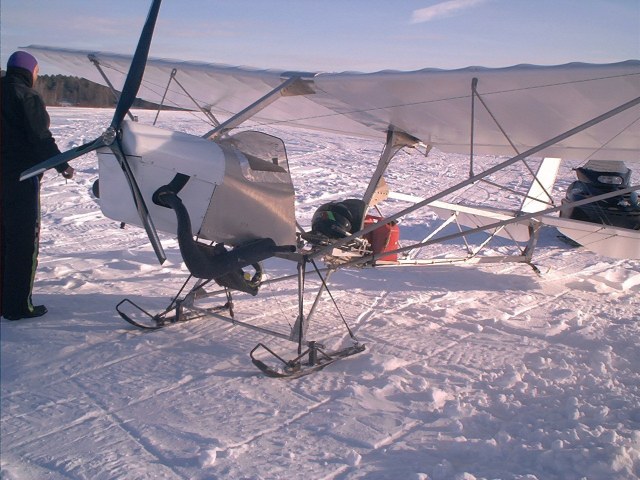

Affordaplane-The Affordaplane is the creation of Dave Edwards of Riverview Florida. His goal "combine the best innovations to come from the ultralight industry, to create a rugged, bolt together ultralight, with a build time of right around 150 hours, without any special jigs or elaborate setups." When you consider he built the original
prototype in his "single wide mobile home" you have to give
him A for effort. The Affordaplane is a The wings are use "cross brace ladder style construction, with foam ribs, and 1 1/2 inch cap strips. Covering is heat shrink dacron. Building time is estimated to be in the 150 to 200 hour range, with the completed plane's estimated price at around $2,000 minus engine and instruments. Controls are standard stick and rudder, with ailerons. As of April 2000 the prototype is in the
"test flight stage" is powered by the 277 single cylinder 27
hp Rotax engine, but the plane is designed to handle engines with
weights from 85 to 90 lbs, which would include the Kawaskai 340/440
Rotax 277/377/447 Hirth, 2si etc. With these engines empty weight comes in at between 245 and 254 lbs, with the gross weight for the plane pegged at 500 lbs. Wingspan is 27 feet 5 inches, wing area 123 sq ft, cruise 55 mph and stall 26 mph. The plans consist of 35 sheets of 28 x 11 full size drawings, an A to Z builders manual, a materials list. For more information contact: Affordaplane |
|||||
|
|
|||||
| For hours and hours of web video interviews on the world of ultralight aviation subscribe to the Ultralight Flyer web video magazine - Only $24.50 U.S. per year gives your access to web video on ultralight aircraft, ultralight builders, ultralight manufacturers, designer, accessories and much, much more! | |||||
|
|||||
|
|||||
| Ultralight Aircraft News Web Magazine PO Box 1710 Holland Landing Ontario Canada L9N 1P2 647-723-8767. You may link to these pages or print them out for your own personal use, but no part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, manual, or otherwise, without the written permission of Dave Loveman. By copying or paraphrasing the intellectual property on this site, you're automatically signing a binding contract and agreeing to be billed $10,000 payable immediately. Copyright Ultralight News - Ultralight Flyer. | |||||
| Return to Main Index for this section | |||||
|
|
|||||
single seat ultralight. Fuselage
construction uses two inch square T 6-6061 T-6 tubing, and is bolted
together with AN 3 and 4 bolts using gusset plates.
