Kolb FireFly
ultralight aircraft pictures, Kolb FireFly part 103 legal ultra lite aircraft
images, Kolb FireFly ultralight plane photographs,
Ultralight News newsmagazine.
|
Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|

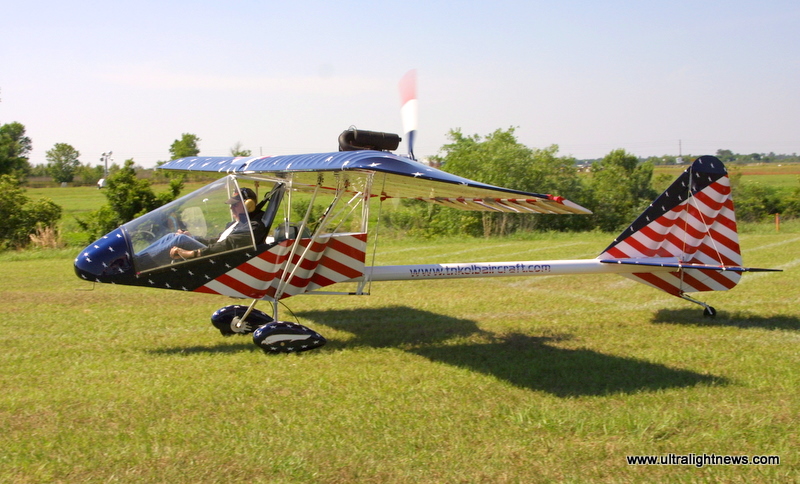

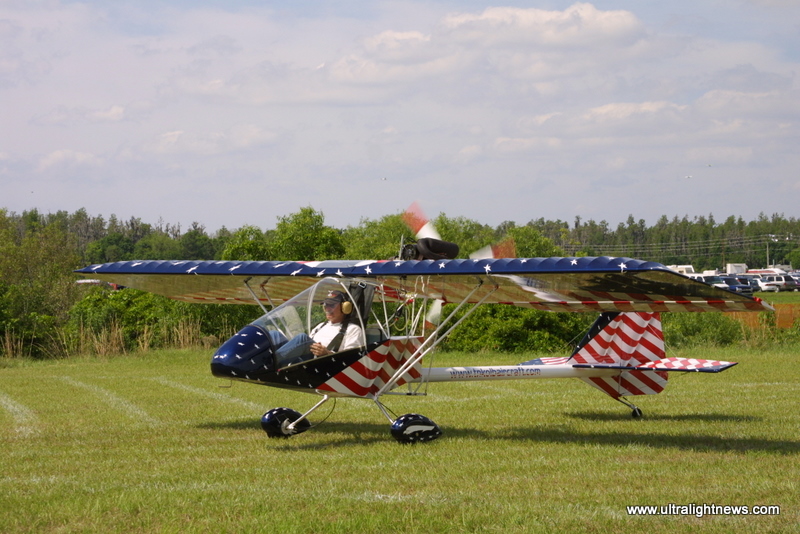

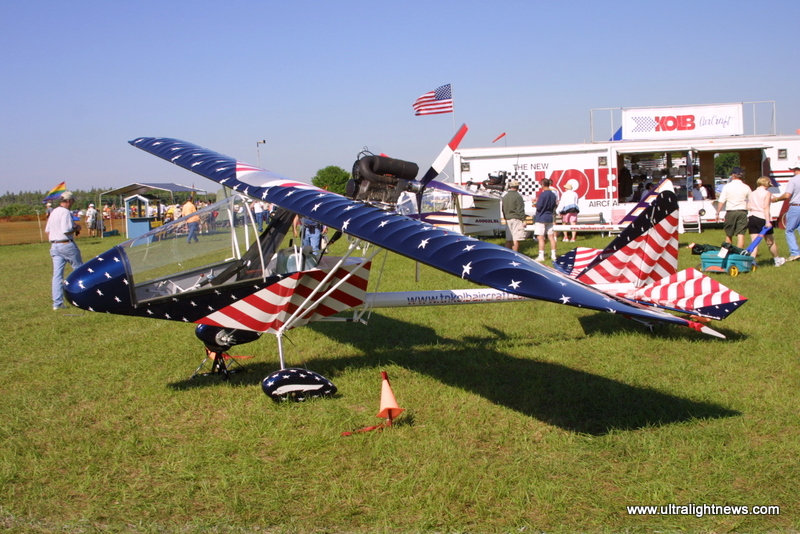

Kolb FireFly pictures, images of the
Kolb FireFly ultralight, experimental, lightsport aircraft.
|
 |
Kolb FireFly pictures, images of the
Kolb FireFly ultralight, experimental, lightsport aircraft.
|
|
|
Kolb Firefly
Performance Data
|
| Horsepower: |
41
hp |
| Fuel
Capacity: |
5 gal |
19
L |
| Cruise: |
56 kts |
104 kmh |
64 mph |
| Stall: |
23 kts |
43 kmh |
26 mph |
| Climb: |
1,000 ft/min |
5.1 m/sec |
| Takeoff
Distance: |
150 ft |
46
m |
| Landing
Distance: |
150 ft |
46
m |
Kolb Firefly
Specifications
|
| Gross
Weight: |
500 lbs |
227 kg |
| Empty
Weight: |
252 lbs |
114 kg |
| Useful
Load: |
248 lbs |
112 kg |
|
Wingspan: |
22
ft |
6.71 m |
|
| Length: |
19.5 ft |
5.94 m |
| Height: |
5.75 ft |
1.75 m |
|
Kolb FireFly
Ultralight Aircraft |
Kolb FireFly
Experimental Aircraft |
|
|
|
|
|
|
To view the
pictures, images of the Kolb FireFly click on the smaller
images and they will enlarge. To return to the index page for the Kolb FireFly click on Kolb FireFly Index link, to view
video of the Kolb FireFly click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
