Ed Fisher's Flit Plane ultralight aircaft kit.
|
This Ultralight Aircraft Plans
package includes
construction plans, construction manual and a video tape
(shows the Flitpland in flight and on runway) to build the legal
ultralight Flitplane, that has been featured in Ultralight Flying
Magazine January 1998.
Tackling the task of building a flying machine is
an
all inspired task. Many people build airplanes to get into the air
"cheaper". Many build to have something when they are through that few
others have. Many just like the challenge and reward of creating something
beautiful. There is so much variety in the ultralight field, which is what
makes this sport such a rewarding one!

The FLITPLANE has been created to provide a plans built, low cost
Ultralight Airplane. No attempt was made to design the machine for high
volume production. The main goal was to get people out in their garages or
down in their basements building airplanes again, rather than wishing they
could afford one currently on the market. The beauty of a plans built
plane is that it
can be built as the builder can afford it, at little at a time. Not
everyone has $15,000+ to drop down for one of the “Tinker Toy Kits”. Build
a subassembly a week from these plans, wrap it up or bag it for
protection, label it and in no time your very own “kit” will be ready for
assembly.
The FLITPLANE was designed to use conventional
construction of a 4130
steel fuselage, aluminum tubing tail and wing, and fabric covering. There
is nothing exotic in the FLITPLANE, it is derived from the many years of
us building airplanes and paying attention to how things were done.
This plans, video & manual package gives you the best shot at having a
good looking, good flying LEGAL Ultralight for the price of a good used
car.
But remember, if you want to keep the overall cost down; study plans
carefully before purchasing or cutting any materilas, do careful shopping
for raw materials, and be careful not to waste valuable material.
| SPECIFICATIONS:
|
|
- Configuration: Single seat, high wing, tail dragger
- Wing Span: 27’
- Wing Area: 145 sq. ft.
- Wing Loading: 3.4 lbs/sq. ft.
- Power Loading at Gross: 14.3 lbs per hp
- LOA: 15”-9”
- Height: 6’
- Seats: 1
- Cabin Width: 30”
- Max Gr. Wt.: 500 lbs.
- Empty Wt.: 249 lbs.
- Payload (full fuel): 251 lbs
|
- Fuel Capacity: 5 gal.
- Take Off Distance: 50-100 ft.
- Landing Distance: 100-175 ft.
- Vmax: 70 mph
- Stall: 26 mph
- Cruise: 50 mph
- Top Speed: 70 mph
- Rate of Climb: 850 fpm
- Engine: Rotax 447 (40hp), 2SI (35 hp)
- Construction: Steel, Aluminum Tube, Fabric
- Estimated Build Time: 500 hrs.
|
Midwest Engineering & Design
6661 Park Street
Shawnee, KS 66216 |
|
 |
|
|

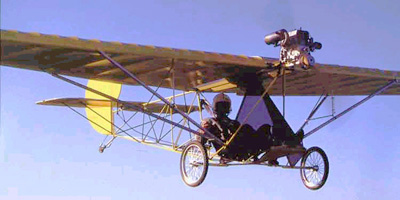

Flitplane a short sample video.
Requires Broad Band - High Speed internet connection and Real
Player.
For hours and hours of video footage on ultralight aviation,
including buyers guide videos, engine rebuilding videos, tech tips
and much much more
Subscribe to the Ultralight Flyer web video magazine.
by : Videographer Dave Loveman
|
|
| For a number of web video interviews on Ed Fisher ultralight
aircraft kits subscribe to the Ultralight Flyer web video magazine. |
|
