JDT Mini-Max specifications

Build time 250-300 hours
Engine Rotax 277 or 447
Wingspan 25' - 0"
Wing area 112.5 sq. ft.
Length 15' - 6"
Empty weight 237 lbs. (with Rotax 277)
Gross weight 560 lbs.
Design load factors +4.4 -1.8

JDT Mini-Max performance specifications

Top speed 70 mph
Cruise speed 55 mph
Stall speed 27-30 mph
Climb rate 650 fpm
Vne 100 mph
Take-off roll 150 ft.
Landing roll 180 ft.

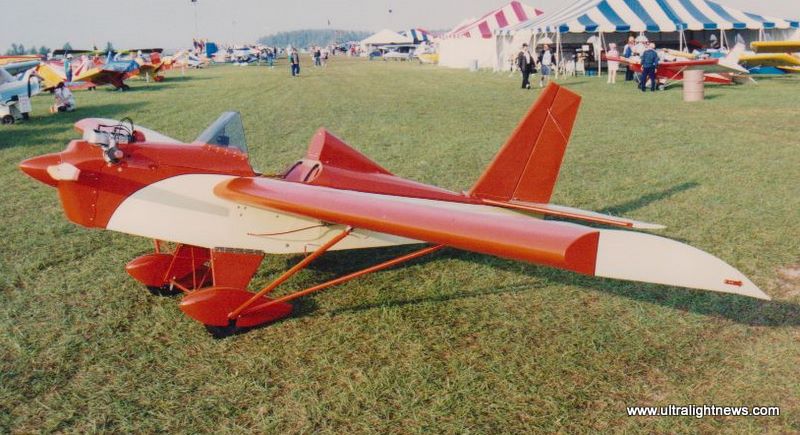

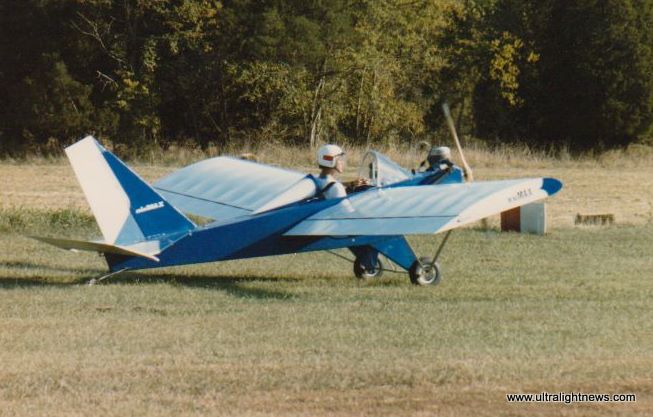

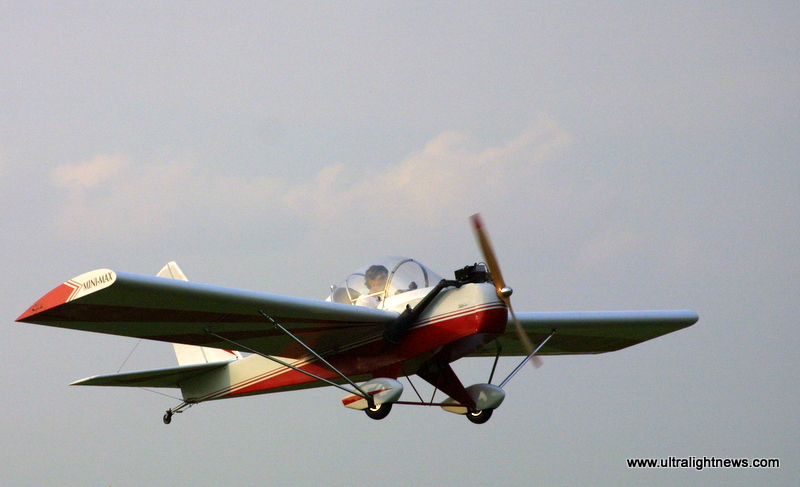

JDT Mini-Max Experimental Aircraft
JDT Mini-Max Experimental Aircraft
JDT Mini-Max Experimental Homebuilt Aircraft
JDT Mini-Max Experimental Homebuilt Aircraft

To view the pictures, images of the  JDT Mini-Max click on the smaller images and they will enlarge. To return to the index page for the JDT Mini-Max click on  JDT Mini-Max Index link, to view video of the JDT Mini-Max click on the Video link, to return to the Main Index click on the UltralightNews link.
