| Empty Weight: |
360 lbs. |
| Gross Weight: |
685 lbs. |
| Wing Span: |
26.4 ft. |
| Wing Area: |
100 sq. ft. |
| Engine: |
447 Rotax |
| Cruise Speed: |
65 m.p.h. |
| Stall Speed: |
35 m.p.h. |
| VNE: |
120 m.p.h. |
| Construction: |
aluminum tube/steel/dacron |
| Building time: |
200 Hrs. |

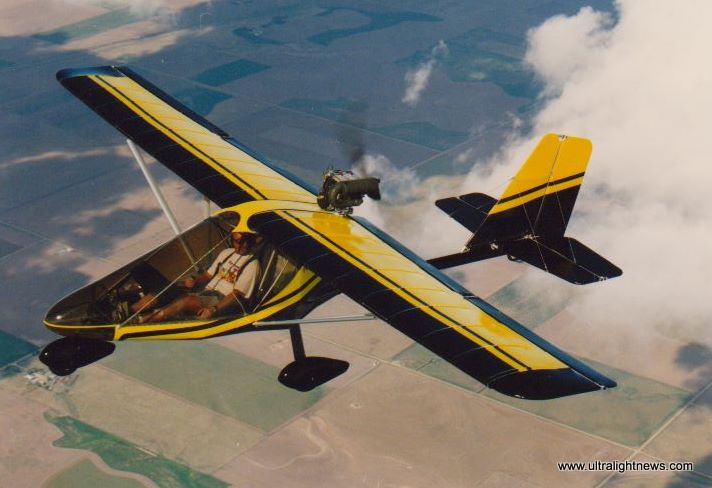

The Airaile S-14 has been in production since 1991. The kit utilizes bolt together
aluminum construction, with a welded steel front section, covered in presewn dacron sail
cloth, with a fiberglass enclosure.
Standard features include folding wings, and tail, a
full enclosure, 4 position flaps, toes brakes, instruments, shoulder harness, adjustable
seat, 2 blade prop , a 9 gallon wing tank, aluminum wheels and streamlined struts.
Options
include the 503/582 Rotax, electric start, extra wing tank, elevator trim. It is also
available in a larger wing.
For more information contact
Rans
4600 Highway 183 Alternate
Hays KS 67601
|
