Single place Part 103 ultralights in the United States are defined as single
place ultralight aircraft that weigh 254 lbs or less, have a stall speed
not more than 24 knots, a top
speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a
legal Part 103
ultralight aircraft in the United States the pilot does not require a
pilot license.
Single place aircraft weighing more than 254 lbs. in the U.S. require a
pilots license and must be built as experimental, amateur built,
homebuilt aircraft. These include weight shift aircraft, more commonly
known as trikes, powered parachutes, and powered para-gliders.
Single place ultralights in Canada can weigh up to 1200 lbs. and an
ultralight pilots license is required to fly them.
|
|
|
|
|
|
|
|

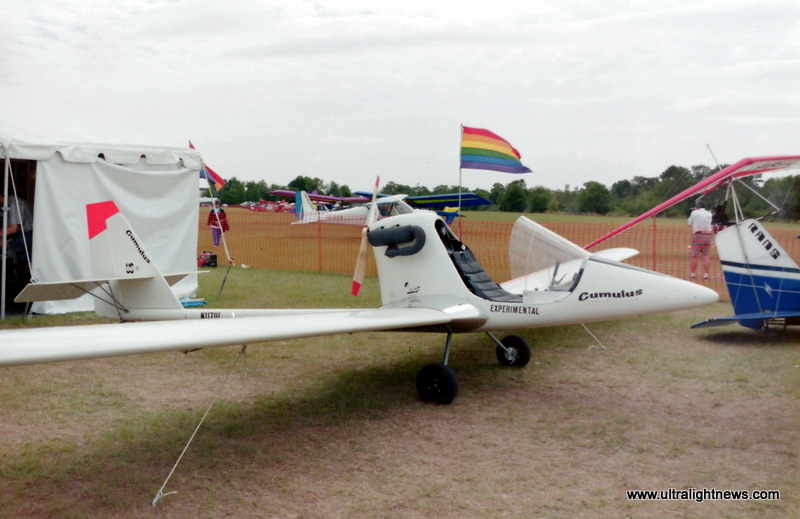

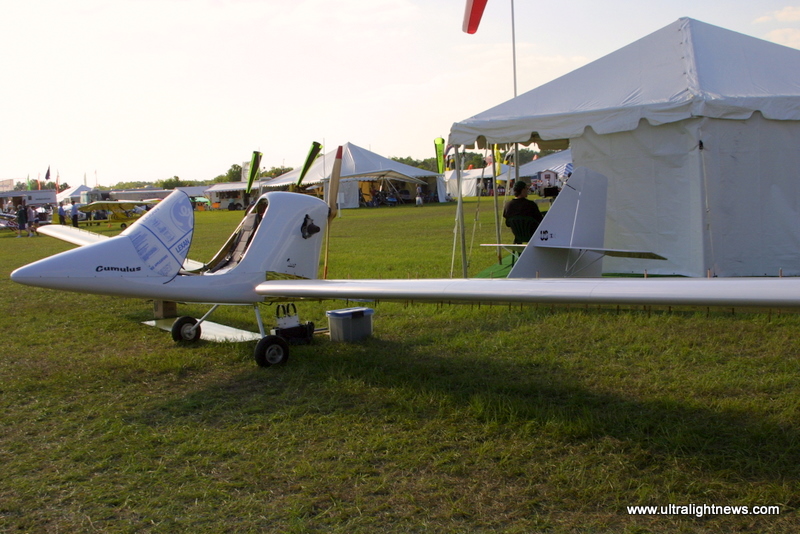

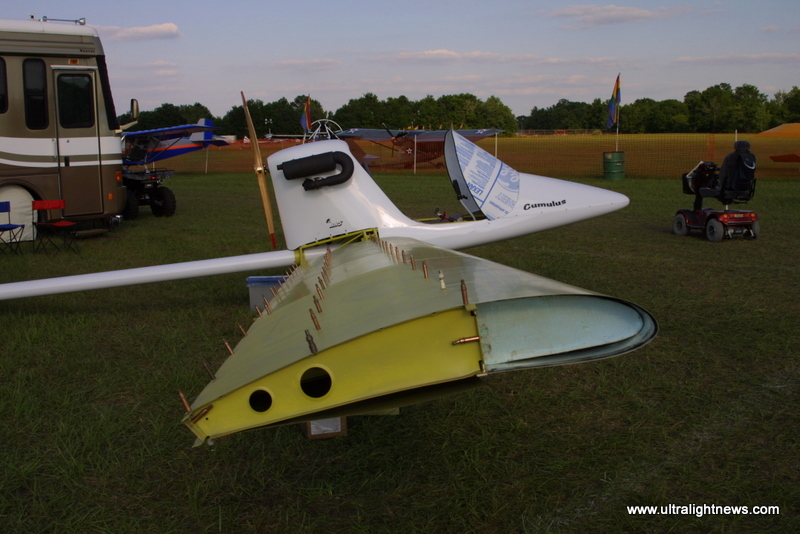

Cumulus ultralight motorglider pictures, images of the
Cumulus ultralight motorglider, experimental, lightsport aircraft.
|
 |
Cumulus ultralight motorglider pictures, images of the
Cumulus
ultralight motor glider experimental, lightsport aircraft.
|
|
|
Cumulus motor glider specifications and
performance data
|
|
Wing Span |
43 feet (13.1 m.) |
|
Wing Area |
140 square feet (12.7 sq. m.) |
|
Length |
20 feet (6.1 m.) |
|
Empty Weight |
360 pounds (164 kg) before options |
|
Gross Weight |
640 pounds (291 kg) |
|
Fuel Capacity |
5 gallons (19 l.) |
|
Pilot Weight Range |
200 to 250 pounds (90-115 kg) |
|
Best Glide Ratio |
20:1 (assumes wheel pants and fullest enclosure) |
|
Best Sink Rate |
190 feet/minute (0.95 m/sec.) |
|
Max Speed |
90 mph (144 km/h) |
|
Cruise Speeds |
35-75 mph (55-120 km/h) |
|
Typical Cruise |
55-60 mph (95 km/h) |
|
Stall Speed |
32 mph (51 km/h) [Stall speed assumes best flaps and light
options.] |
|
Climb Rate |
800 fpm (4 m/sec.) |
|
Range |
over 200 miles (320 km) |
|
Limit Load |
+4.4 G and -2.0 G |
|
Cumulus ultralight motorglider |
Cumulus motorglider
Experimental Aircraft |
|
|
|
|
|
|
To view the
pictures, images of the Cumulus ultralight motorglider click on the smaller
images and they will enlarge. To return to the index page for the Cumulus ultralight motorglider click on Cumulus ultralight motorglider Index link, to view
video of the Cumulus ultralight motorglider click on the Video link, to
return to the Main Index click on the UltralightNews link. |
|
|
|
|
|
|
|
