Single place Part 103 ultralights in the United States are defined as single place ultralight aircraft that weigh 254 lbs or less, have a stall speed not more than 24 knots, a top speed of 55 knots, and carry no more than 5 gallons of fuel. To fly a legal Part 103 ultralight aircraft in the United States the pilot does not require a pilot license.

Single place aircraft weighing more than 254 lbs. in the U.S. require a pilots license and must be built as experimental, amateur built, homebuilt aircraft. These include weight shift aircraft, more commonly known as trikes, powered parachutes, and powered para-gliders.

Single place ultralights in Canada can weigh up to 1200 lbs. and an ultralight pilots license is required to fly them.

Quicksilver MX parts and service for ultralight and light sport aircraft.

Aircraft instruments, guages, engine gauges for ultralight and light sport aircraft.

Aircraft repairs for ultralight and light sport aircraft.

Rotax 503 engine, sales, service, parts and accessories for ultralight and light sport aircraft.

Rotax gear boxes, parts, and service for ultralight and light sport aircraft.



Single Place Buyers Guide Index



Ultralight News

Fisher FP404 Index

Fisher FP404 Specifications & Pictures

Fisher FP404 Video

Fisher FP404 pictures and specifications, images of the Fisher FP404 amateur built experimental homebuilt aircraft specifications and data.

Fisher FP404 experimental aircraft pictures, Fisher FP404 amateur built aircraft specifications, Fisher FP404 homebuilt aircraft specifications and photographs, Ultralight News newsmagazine.

Fisher FP404 pictures, images and specifications for the Fisher FP404
amateur built experimental homebuilt aircraft.

Sail sets, wing sets, wing cover for ultralight and light sport aircraft.

Flight training for ultralight and light sport aircraft.

Windsocks, portable windsocks, replacement windsocks.

Throttle cables for Rotax, Hirth, Kawasaki engines used on ultralight and light sport aircraft.

Fisher FP 404 Performance Specifications

Horsepower: 65 hp
Fuel Capacity: 5 gal 19 L
Range: 122 nm 226 km 140 mi
Cruise: 63 kts 117 kmh 72 mph
Stall: 26 kts 48 kmh 30 mph
Climb: 800 ft/min 4.1 m/sec
Ceiling: 10,000 ft 3,048 m
Takeoff Distance: 125 ft 38 m
Landing Distance: 200 ft 61 m

Fisher FP 404 Specifications

Gross Weight: 540 lbs 245 kg
Empty Weight: 275 lbs 125 kg
Useful Load: 265 lbs 120 kg
Wingspan: 18 ft 5.49 m
Length: 14.5 ft 4.42 m
Height: 5.42 ft 1.65 m

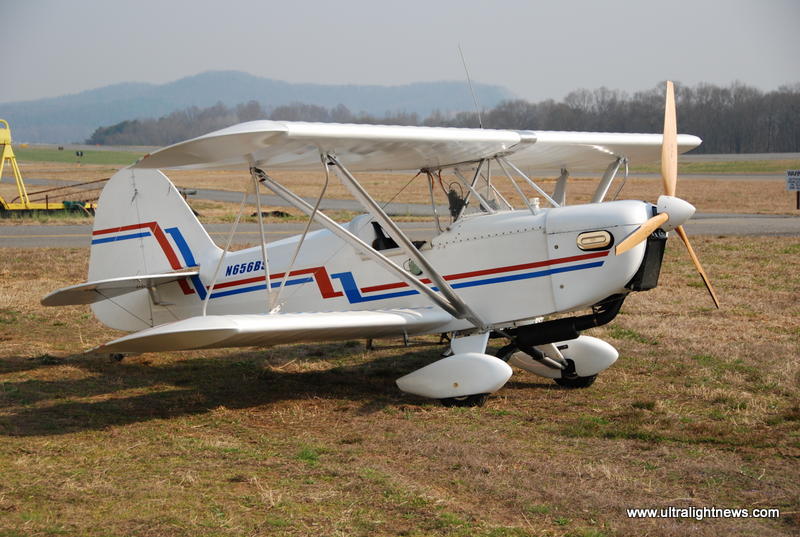

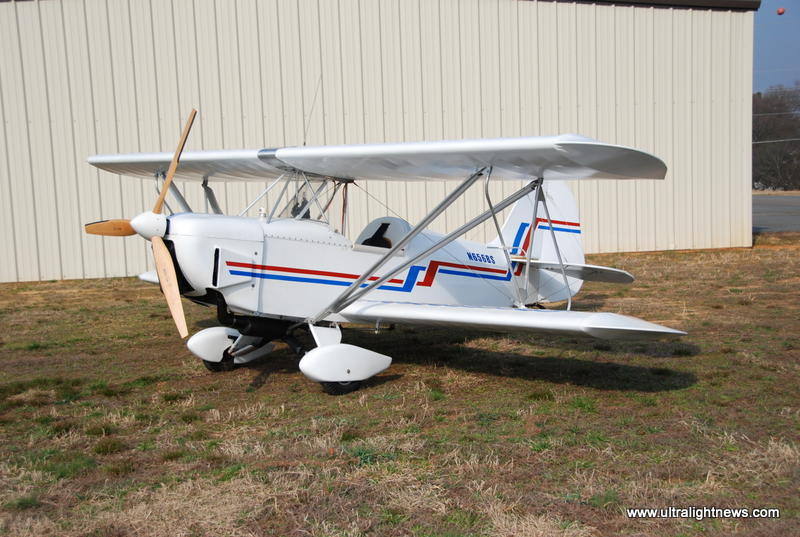

Fisher FP404 Experimental Aircraft
Fisher FP404 Experimental Aircraft
Fisher FP404 Experimental Homebuilt Aircraft
Fisher FP404 Experimental Homebuilt Aircraft

To view the pictures, images of the  Fisher FP404 click on the smaller images and they will enlarge. To return to the index page for the Fisher FP404 click on  Fisher FP404 Index link, to view video of the Fisher FP404 click on the Video link, to return to the Main Index click on the UltralightNews link.
