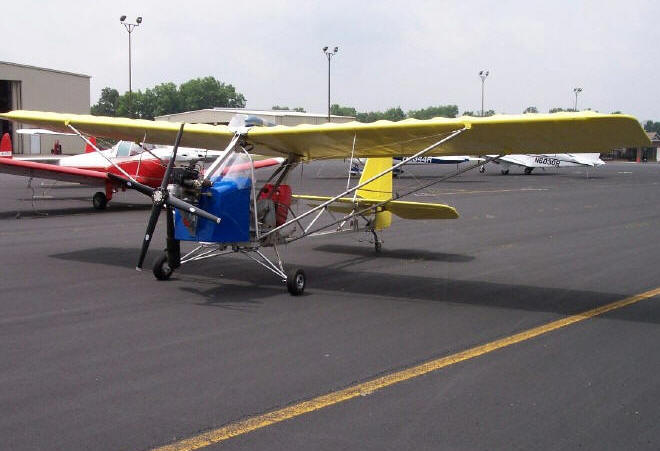

Affordaplane plans built ultralight and light sport aircraft.

The Affordaplane is the creation of Dave Edwards of Riverview Florida. His goal "combine the best innovations to come from the ultralight industry, to create a rugged, bolt together ultralight, with a build time of right around 150 hours, without any special jigs or elaborate setups."

When you consider he built the original prototype in his "single wide mobile home" you have to give him A for effort. The Affordaplane is atail2.jpg (8908 bytes) single seat ultralight. Fuselage construction uses two inch square T 6-6061 T-6 tubing, and is bolted together with AN 3 and 4 bolts using gusset plates.

The wings are use "cross brace ladder style construction, with foam ribs, and  1  1/2 inch cap strips. Covering is heat shrink dacron. Building time is estimated to be in the 150 to 200 hour range, with the completed plane's estimated price at around $2,000 minus engine and instruments. Controls are standard stick and rudder, with ailerons.

As of April 2000 the prototype is in the "test flight stage" is powered by the 277 single cylinder 27 hp Rotax engine, but the plane is designed to handle engines with weights from 85 to 90 lbs, which would include the Kawaskai 340/440 Rotax 277/377/447 Hirth, 2si etc.engcowl.jpg (8040 bytes)

With these engines empty weight comes in at between 245 and 254 lbs, with the gross weight for the plane pegged at 500 lbs. Wingspan is 27 feet 5 inches, wing area 123 sq ft, cruise 55 mph and stall 26 mph.

The plans consist of 35 sheets of 28 x 11 full size drawings, an A to Z builders manual, a materials list.

For more information contact:

Affordaplane
6817 Alafia Drive
Riverview, Florida 33569

UltraFlight review on the Affordaplane May 2004
Plans Index Page 1 Page 2 Page 3
For a web video interview on the Affordaplane - Subscribe to the Ultralight Flyer web video magazine - Your yearly subscription gives your access to hours and hours of web video on ultralight aircraft, ultralight builders, manufacturers and accessories! Including engine rebuilding videos on the Rotax 377, Rotax 447, Rotax 503, Rotax 532, and Rotax 582, which are EACH approximately 2 hours in length!
