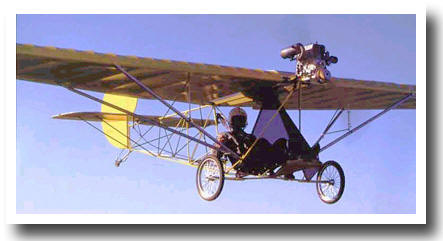

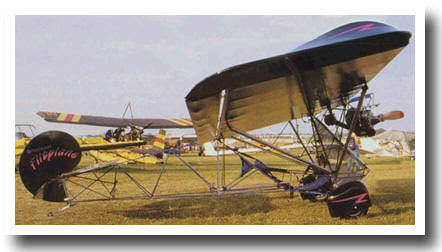

Flitplane aircraft plans
|
| This Ultralight Aircraft Plans
package includes construction plans, construction manual and a
video tape (shows the Flitplane in
flight and on runway). Flitplane, has been featured in
Ultralight Flying Magazine January 1998.
Tackling the task of building a
flying machine is an all inspired task. Many people build airplanes
to get into the air "cheaper". Many build to have something when
they are through that few others have. Many just like t he
challenge and reward of creating something beautiful. There is so
much variety in the ultralight field, which is what makes this sport
such a rewarding one!
The FLITPLANE has been created to provide a plans
built, low cost Ultralight Airplane. No attempt was made to design
the machine for high volume production. The main goal was to get
people out in their garages or down in their basements building
airplanes again, rather than wishing they could afford one currently
on the market.
The beauty of this plans built Flitplane is that
it can be built as the builder can afford it, at little at a time.
Not everyone has $12,000+ on hand to purchase one of the “Tinker Toy
Kits”. Build a sub-assembly a week from these plans, wrap it up or
bag it for protection, label it... and in no time your very own
“Kit” will be ready for assembly.
The FLITPLANE was designed to use conventional
construction of a 4130 steel fuselage,
aluminum tubing tail and wing, and
fabric covering. There is nothing exotic in the FLITPLANE, it is
derived from the many years of us building airplanes and paying
attention to how things were done.
This plans & manual package gives you the best
shot at having a good looking, excellent flying LEGAL Ultralight for
about the price of a good
used car.
ADDITIONAL CONSTRUCTION MATERIALS:
- 20+ page Construction Manual
- Work Table Construction Plan
- Weight and Balance Worksheet
- Materials List
|
Drawings Included in Plans Set
All Drawings are 17” x 22” |
Description |
| Sheet 1 |
3 View Drawings |
| Sheet 2 |
Fuselage Layout & Tubing Chart |
| Sheet 3 |
Pulleys, Gear Leg, Strut Tab Details
|
| Sheet 4 |
Frame Fittings, Tail Wheel Details
|
| Sheet 5 |
Fuel Tank, Seat Sling, Support Tabs
|
| Sheet 6 |
Horns, Risers, Bell Cranks |
| Sheet 7 |
Tail Construction |
| Sheet 8 |
Wing Construction |
| Sheet 9 |
Wing Rib Layout |
| Sheet 10 |
Wing Rib Details |
| Sheet 11 |
Wing Root Details |
| Sheet 12 |
Aileron Strut Details |
|
 |
Midwest Engineering & Design
6661 Park Street
Shawnee, KS 66216 USA
|
|
|
