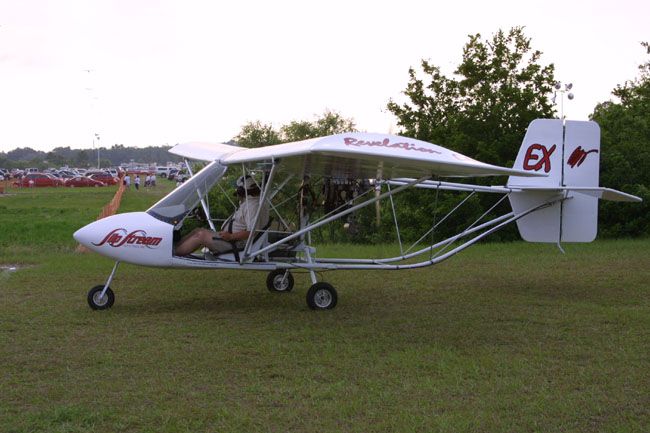

The Revelation is a side by side
seating two place, using tricycle landing gear, in a pusher
configuration. The designer Chuck Hamilton, also designed the
popular Challenger line of aircraft.
|
Empty Weight: |
465 lbs. |
| Gross Weight: |
1200 lbs. |
| Wing Span: |
26 ft. 8 in. |
| Wing Area: |
155 sq. ft. |
| Engine: |
503 Rotax |
| Cruise Speed: |
66 m.p.h. |
| Stall Speed: |
45 m.p.h. |
| VNE: |
120 m.p.h. |
| Construction: |
Aluminum
Tube/Fabric |
Construction is bolt together aluminum
tube, covered
in conventional aircraft covering materials. Building times 250/300 hrs.
Two pilots can sit quite comfortably in its
43 inch wide cabin. Controls are stick and rudder, with optional
yoke controls available. The factory reports that the craft has been
tested to +7 and -5.6 Gs.
For more information contact,
Slipstream
Industries,
W8407 Cottonville Dr.
Wautoma WI
54982
A T.U.F. VIEW
When equipped with he 582 Rotax engine the
Revelation
climbs out at around 650 feet per minute, cruise is 65 m.p.h.
At cruise cabin noise is
quite acceptable, visibility good, and pilot comfort rates an A.
The Ultralight Flyer rates
The
Factory..................................8.0
The Revelation ............................7.5
|
