Zenair
CH 701
|
|

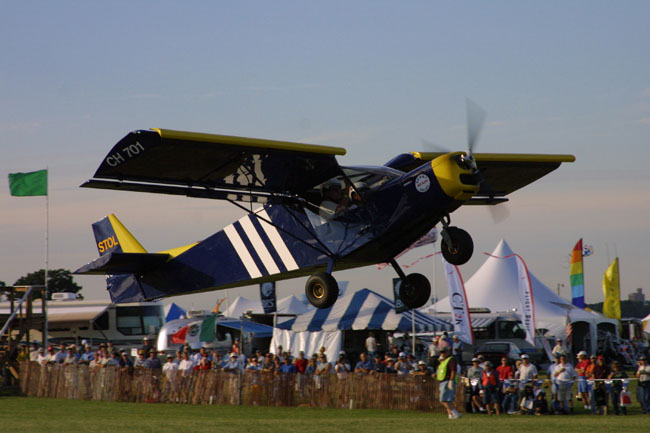

The Zenair CH 701 was designed to
be a STOL aircraft. Take off roll is 120 feet on grass, and 90
feet on pavement with two onboard and full fuel. Which means
that by the time you have applied full power you are just about
ready to rotate and start flying.
The STOL CH 701 is an all metal
craft that can be built from plans or is available in various
kit forms. It is well engineered and used all metal construction
throughout. Building
times as reported by the
factory are 400 hours.
The CH 701 is available in a trigear tractor configuration. It
features side by side seating with dual controls, using a center
mounted stick.
Several have been built during the 6 day shown
at Sun N Fun at Lakeland Florida. The wings use "junker" type flaps on the
leading edge to aid in climb and reduce stall. The craft has been tested to +6 and -3 G's.
A T.U.F. VIEW
With the 582 Rotax 65 HP engine climb rate at gross comes in about 800
f.p.m.. Cruise
speed 65/70 m.p.h. stall speed on the units I have flown comes in around 35 m.p.h..
Visibility is a little restricted, and cabin noise high.
If I were ordering one I would
order the new stronger landing gear. Great little aeroplane, some describe as the
"Jeep" of light aircraft. Loose an engine on this baby
though and its a fast freight
elevator ride down.
My personal feeling is it is a little over rated.
The Ultralight Flyer rates
The Factory.................................. 9.0
The CH 701.............. ....................
6.5
|
|
STOL CH
701
PERFORMANCE |
ROTAX
912 (80 HP) |
ROTAX
912 (100 HP) |
|
|
SINGLE |
DUAL
|
SINGLE |
DUAL
|
|
TOP SPEED
(MPH) |
95
|
95
|
100
|
100
|
|
CRUISE
(MPH) |
80
|
80
|
90
|
90
|
|
Vne (MPH)
|
110
|
110
|
110
|
110
|
|
STALL
(MPH) |
28
|
30
|
28
|
30
|
|
RATE OF
CLIMB (FPM) |
1400
|
1200
|
1600
|
1400
|
|
TAKE-OFF
ROLL (FEET) |
45
|
90
|
40
|
85
|
|
LANDING
ROLL (FEET) |
80
|
140
|
80
|
140
|
|
SERVICE
CEILING (FEET) |
15000+
|
12000+
|
15000+
|
12000+
|
|
STD.
RANGE (MILES) |
400
|
400
|
400
|
400
|
|
ENDURANCE |
5 Hrs.
|
5 Hrs.
|
4,5 Hrs.
|
4,5 Hrs.
|
|
|
STOL CH
701
SPECIFICATIONS |
|
|
WING SPAN
|
27 FEET
|
8.2 m.
|
|
WING AREA
|
122
SQ.FT. |
11.4 m.sq.
|
|
LENGTH
|
20 Ft. 11
In. |
6.38 m.
|
|
HEIGHT
(rudder tip) |
8 Ft. 7
In. |
2.6 m.
|
|
EMPTY
WEIGHT* |
580 LBS.
|
263 kg.
|
|
GROSS
WEIGHT |
1,100
LBS. |
500 kg.
|
|
USEFUL
LOAD |
520 LBS.
|
236 kg.
|
|
WING
LOADING |
9.0
LBS/FT? |
43.8 m?
|
|
POWER
LOADING |
13.75
LBS/BHP |
6.25 kg/BHP
|
|
DESIGN
LOAD FACTOR |
+6 G /
-3G |
|
CABIN
WIDTH (shoulders) |
41 INCHES
|
104 cm.
|
|
FUEL
CAPACITY (std) |
20 US
Gallons |
76 liters
|
|
|
(2 x 10
gal.) |
(2 x 38
liters) |
|
All figures
based on prototype flight test results. Figures with 80-hp
Rotax at a typical load: pilot and passenger = 1,050 lbs.
All figures subject to change without notice. * Range and
endurance without fuel reserve. CH701 SP has an increased
gross weight to 1100 lb (560 kg). |
|
For more information contact,
Zenair
PO Box 235
Midland Ont.
Can.
L4R 4K8 |
|
 |
|
