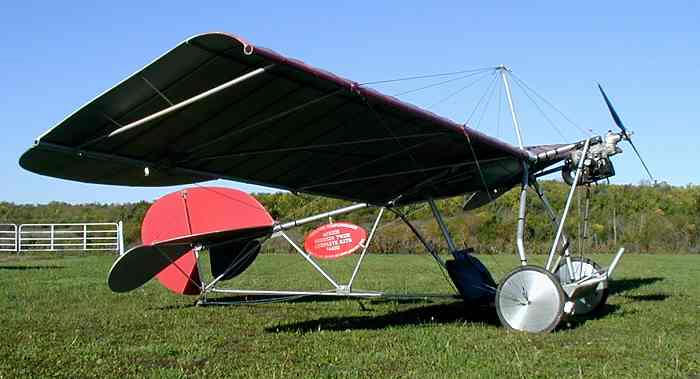

The
dream classic is airdrome airplanes
answer to the cry for an FAA legal, safe, three axis control,
back to basics ultralight aircraft.
With three axis controls, it
handles just like a "real" airplane.
For the pilot
who's flying on a budget, the dream fits the bill. The
dream classic ultralight is a full three axis aircraft with a side
mount stick & is covered with the certified poly fiber process.
This kit comes with all machining & required
welding pre-done. Construction time is normally around 100/120 man
hours .
|
-
WEIGHT 312 LBS
-
ALUMINUM TUBING & RIVET
CONSTRUCTION
-
USEFUL LOAD 320 LBS
-
STALL SPEED 27 MPH
-
CAD DESIGNED & DETAILED
-
CRUISING SPEED 52 MPH
-
QUICK BUILD 200 HOURS
-
TOP SPEED 63 MPH
-
REMOVABLE WINGS
-
RATE OF CLIMB: 550 FPM
-
MODERN 2-STROKE ENGINE
-
ENGINE: 503 ROTAX 52 HP
-
LIGHT RESPONSIVE CONTROLS
-
ENGINE OPTIONS:
TWO STROKE: ROTAX 447 40 HP THROUGH ROTAX 582 65 HP
FOUR STROKE: HALF V/W OR ENGINES UP TO 98 LBS
|
All aluminum tubing to complete
fuselage , wings, landing gear, cabanes, lift struts.
All aluminum sheet metal to construct gussets, All machined parts
for control systems, lift struts, axles, & wings.
All AN hardware to build aircraft,
eyebolts, locknuts, thimbles, nico press swedges aircraft cable
(rudder cables, drag/anti-drag braces).
Ball bearing rod ends for control
system. steel pull rivets. Main wheels, tail wheel, plans and
builders video. All covering supplies through silver.
PRE -BUILT AIRFRAME KIT AVAILABLE
PRE BUILT AIRFRAME CONSIST OF AIRFRAME READY FOR COVERING AND ENGINE
INSTALLATION |
