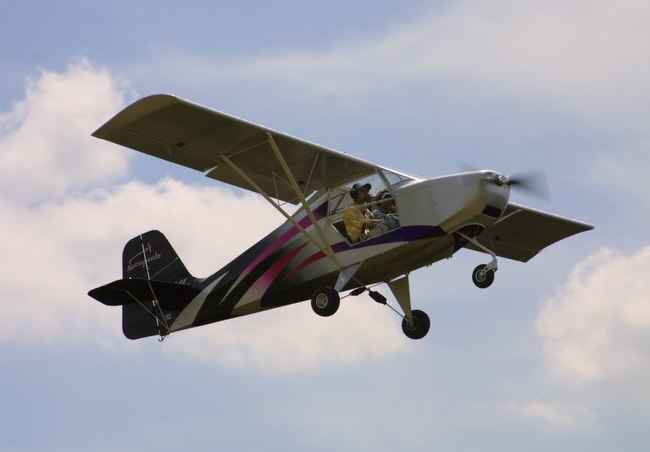

Just Aircraft's Escapade light sport and experimental
aircraft.
|
| The Escapade has been
developed to meet the demand for a two place side-by-side dual
control (individual sticks) aircraft that can be used for training
as well as recreation. The Escapade is made of high quality
materials that will ensure a lifetime of enjoyment, which can be
passed onto the next generation.
The Fuselage, tail and landing gear are
manufactured from high quality 4130 Chromemoly steel. The wings fold
in under 2 minutes with no disconnecting of any controls or control
surfaces. The Escapade can be configured with tail-wheel or
tri-cycle landing gear with the ability to swap from one to the
other in about 1 hour.
The Escapade has been through UK Section S static
testing certification requirements and flight-testing certification
requirements. The Escapade can be installed with any power plants in
the weight range of the Rotax 503 up to the Rotax 914. |
| Wing Span |
28'6" |
| Area |
108 sq.ft. |
| Mean Cord |
45" |
| Length |
19' |
| Height |
7'2" |
| Length Fold |
19'2" |
| Width Folded |
7'11.5" |
| Number of Seats |
2 |
| Number of Doors |
2 |
| Landing Gear |
Tricycle or Tail Wheel |
| Gear Width |
6' |
| Fuel Capacity |
19 gal |
|
| |
Mph |
Knots |
Mph |
Knots |
| VNE |
130 |
115 |
115 |
100 |
| Cruise |
90 |
80 |
95 |
83 |
| Stall W/Flaps 40 degrees |
27 |
23 |
23 |
19 |
| Stall Clean |
32 |
27 |
27 |
23 |
| |
At 1232 lbs |
At 880 lbs |
At770 Ibs |
| Take Off Distance 10 50ft. |
100ft. |
600ft. |
450ft. |
| Climb Rate |
800fpm |
1200fpm |
1500fpm |
|
Just AirCraft
170 Duck Pond Road
Walhalla, SC 29691
(864)718-0320 |
|
 |
|
