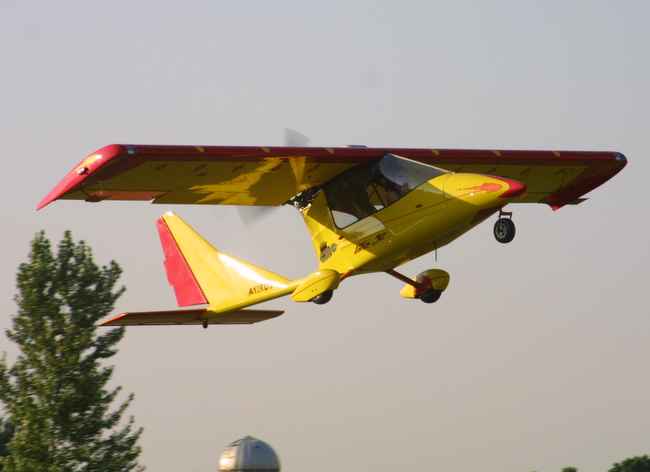

The Tornado 11 introduced in 1992 is a tandem seating two place,
trigear, in a pusher configuration. The fuselage is welded 4130
chromoly while the wing is all pop riveted aluminum. Building times
reported in the 250 to 350 hour range. The kit includes all
required material, components and fasteners. The kit does not
include the engine, propeller, and instruments.
The control system is
standard stick and rudder. Entrance is through doors located on one side of the plane,
front entrance easy, rear seat a little harder. Cabin width is 24 inches.
For more information contact,
TITAN AIRCRAFT
2730 WALTER MAIN RD.
GENEVA OH 44041
A T.U.F. VIEW
The Titan 11 is a rather unique little aeroplane in that it features a cantilever wing (self
supporting no struts) and has a very short wing.
Cruise speeds are in the 85/90 m.p.h.
range depending on engine while climb rates at gross come in around 900 feet per minute.
The Titan Tornado combines friendly low speed handling
characteristics with agility and high performance. The Tornado 2 is
designed to a +6g / -4g load limit capability at 1000 pounds gross
weight.
When operating with the rotax 582 engine the
cruise speed is in excess of 110 mph. The stall speed in landing
configuration flying solo is 35 mph.
The Ultralight Flyer rates
The Factory.................................. 8.0
The Tornado 11............................ 8.0
|
