Light Miniature Aircraft LM 5X
super cub
|
|

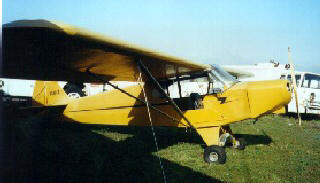

The LM-5X Super Cub was first introduced in 1993, is an 88% scaled
version of a J-3 Cub. Construction is wood covered in conventional aircraft covering
materials.
|
Model # |
LM-5X-W |
|
Replica Type |
Super Cub |
|
Scale |
100% |
|
Seating |
2-Tandem |
|
Cabin Width |
27" |
|
Length |
22' - 7" |
|
Height |
6' - 9" |
|
Wing Span |
35' - 2" |
|
Wing Area |
178 sq. ft. |
|
Wing Loading |
6.4 psf |
|
Max G (plus) |
5.5 |
|
Max G (minus) |
3.5 |
|
Engine |
Rotax 532 |
|
Horse Pwr. |
65 |
|
Fuel Caps. |
10-25 gal |
|
Fuel Cons. |
2.0 gph |
|
Cruise |
80 mph |
|
Stall @ gross |
38 mph |
|
ROC @ gross |
850 fpm |
|
T.O. Dist. |
350 ft |
|
Land Dist. |
400 ft |
|
Ceiling |
10,000 ft |
|
Empty lbs. |
680 |
|
Gross lbs. |
1,100 |
|
Useful Load |
450 |
|
The craft is a high wing taildragger with a tractor engine. Seating is tandem
with dual controls. While the craft was designed to handle both the 503 and 582 Rotax.
My
choice would be the 582 65 HP. The kit comes complete with full size plans for the
fuselage and tail sections. Sub assembly kits are also available.
The craft can also be
built from a set of plans. Building time from kit form is 450 to 600 hours while plane
built times are 12 to 1600 hours.
For more information contact
LIGHT MINIATURE AIRCRAFT
100 Airport Rd.
Pelion SC 29123
A T.U.F. VIEW
I first saw this craft in 1993 at Lakeland at that time it used a metal fuselage. Since
then the designer has changed to an all wood design.
The cabin is a comfortable , with
plenty of head room. Controls are stick and rudder.
When powered by the 582 Rotax cruise
is 75/80 m.p.h., climb 850 feet per minute and stall just over 35 m.p.h.. The manufacturer
indicates that the designs structural limits are +4.5 and -3G's.
The Ultralight Flyer rates
The Factory..................................
7.0
The LM-5X..................................... 7.0
|
| |
|
