Birdman
Atlas
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft.
|
|
|

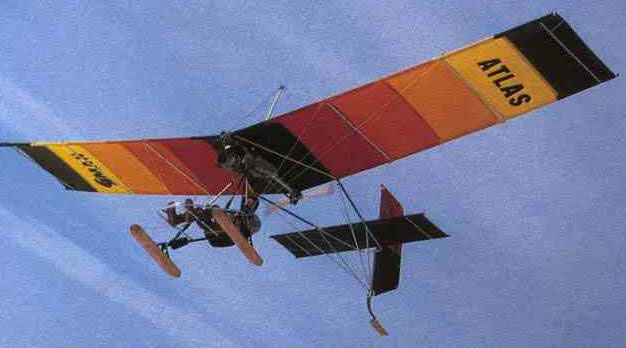

Birdman Aircraft's
Birdman Atlas ultralight is a singer seat, wire
braced, high wing taildragger aircraft, in a pusher configuration.
The Birdman Atlas uses bolt together aluminum tube construction covered in dacron
sailcloth.
The Birdman Atlas has a bungee cord style landing gear on the two main
wheels and tail wheel. Controls on the Birdman Atlas are weight shift with a hand throttle.
The Birdman Atlas is powered by a twin cylinder Rotax
300 cc engine of 28 hp through a belt reduction drive. Cruise is 25 to 35 mph, VNE 55
mph, stall 17 mph, climb rate 600 feet per minute. The Birdman Atlas was produced from
the late 70's until the early 80's. |
|
|
 |
| Birdman Atlas
ultralight aircraft specifications. |
|
Wing Span |
32 ft. |
|
Wing Area |
160 sq. ft. |
|
Max Gross Wt |
lbs. |
|
Empty Wt |
195 lbs. |
|
Payload (full fuel) |
415 lbs. |
|
Fuel Capacity |
5 gal. |
|
Seats |
1 |
|
Birdman Atlas aircraft
performance specifications. |
|
Engine |
300 cc twin cylinder Rotax 28 hp |
|
Range |
75 sm. |
|
Takeoff Dist |
150 ft. |
|
Landing Dist |
150 ft. |
|
VNE |
55 mph. |
|
Cruise |
25 mph. |
|
Climb Rate |
400 fpm. |
|
Stall |
17 mph. |
|
Construction
|
Est. Bldg. Time 75 hrs. Bolt
together, aluminum tube, Dacron sailcloth |
|
|
|
|
 |
|
 |
|
 |
|
 |
|
 |
 |
|
 |
|
 |
|
 |
|
|
|
|
|
|
