Mirage
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft.
|
|

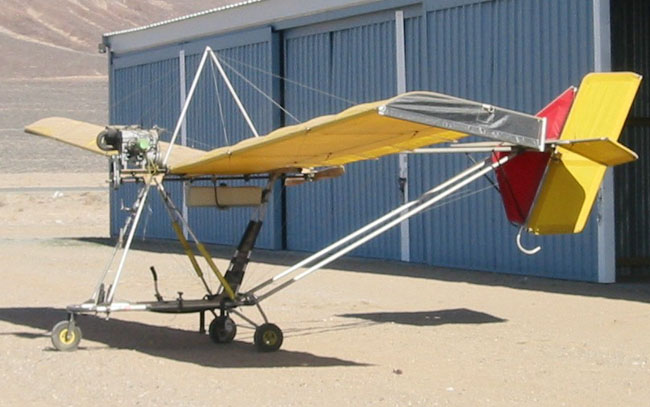

The Mirage ultralight was available in the early
80's as a single place craft. it is a single seat, high wing,
tricycle gear aircraft.
|
|
It was supplied with the Kawasaki 440
engine, and was available in both a pusher configuration using a
drive shaft and in a tractor configuration.
It was a bolt together kit using aluminum tube and
dacron sail cloth. I have seen both wire braced and strut braced
models flying.
It is a two axis
aircraft that uses standard stick and rudder controls with a
left hand throttle, and right hand stick. The ones that I have flown
all had spoilerons, but I have seen one that had ailerons on it.
Construction was bolt together aluminum tube, the single surface
wing was covered in dacron sail cloth.
Mirage Advisory in PDF form.
|
|
Mirage
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft.
|
|
Empty Weight: |
234 lbs. |
|
Gross Weight: |
475 lbs. |
|
Wing Span: |
32 ft. |
|
Wing Area: |
160 sq.ft |
|
Engine:
|
440 Kawasaki |
|
Cruise Speed: |
35 .mph |
|
Stall Speed: |
25 .mph |
|
VNE: |
65 .mph |
|
Construction: |
Aluminum tube/dacron/bolt together |
|
Building time: |
75 .hrs |
|
Original Manufacturer
Ultraflight Mirage. |
|
|
 |
