Thor
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft.
|
|

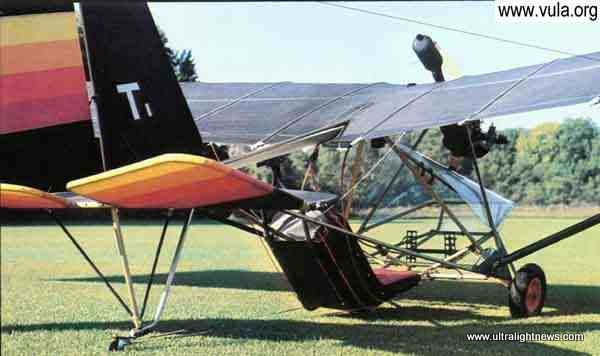

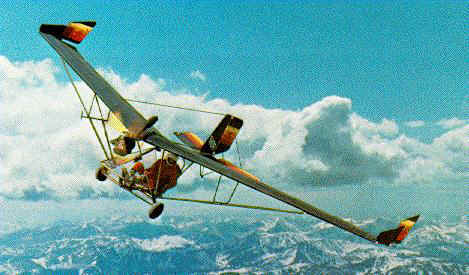

The Thor Air ultralight was designed by Gunter Webster. Originally in a
single place version powered by a 28 horsepower Rotax engine using a
belt drive. The original design did not have ailerons, using wing tip
rudders for banking. |
|
The design was updated to the Rotax 447 when it was
found not to have enough power. A two place was also introduced about 7 of
them were produced, with the last versions updated to aileron control.
The wing was designed around the fledge hang glider wind. The plane was
very short, and had a great deal of weight on the tail.
Control systems were standard stick and rudder, but teleflex cables
were used. The initial two place had a number of these break.
|
|
|
The two place plane was also put on floats but had difficulty getting
of the water. |
| Thor Ultralight aircraft specifications. |
|
Wing Span |
32 ft. 3" |
|
Wing Area |
167 sq. ft. |
|
Max Gross Wt |
500 lbs. |
|
Empty Wt |
238 lbs. |
|
Fuel Capacity |
5 gal. |
|
Seats |
1 |
|
Thor Ultralight aircraft
performance specifications. |
|
Engine |
Rotax 277, 447, 503 |
|
Range |
100 sm. |
|
VNE |
85 mph. |
|
Cruise |
55 mph. |
|
Climb Rate |
450/700 fpm. |
|
Stall |
25 mph. |
|
Construction
|
Est. Bldg. Time 100 hrs. Aluminum
tube bolt together |
|
|
 |
|
Thor
ultralight, ultra lite aircraft, amateur built, experimental,
homebuilt aircraft. |
 |
|
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
 |
|
|
|
|
|
|
|
|
